C739B
- 01： 1) ALL-IN-ONE IR sensor faucet, chrome plated brass body.
- 02： 2)Power: DC 6V with 4 “AA” size ALKALINE 1.5V batteries.
- 03： 3)Water inlet diameter – G1/2”(inch).
- 04： 4)1 min overtime protection to save water.
- 05： 5)Sensor distance can be adjusted.
- 06： 6)Water saving device can be equiped with 2L/min,4L/min,6L/min.
- 07： 7)DC6V type:Low voltage at 4.7V and the light of sensor will be flash to remind that the batteries is going to run out, and when
- 08： the voltage is at 4.3V, the water will be shut off.
- 09：
- 10：
Product Description

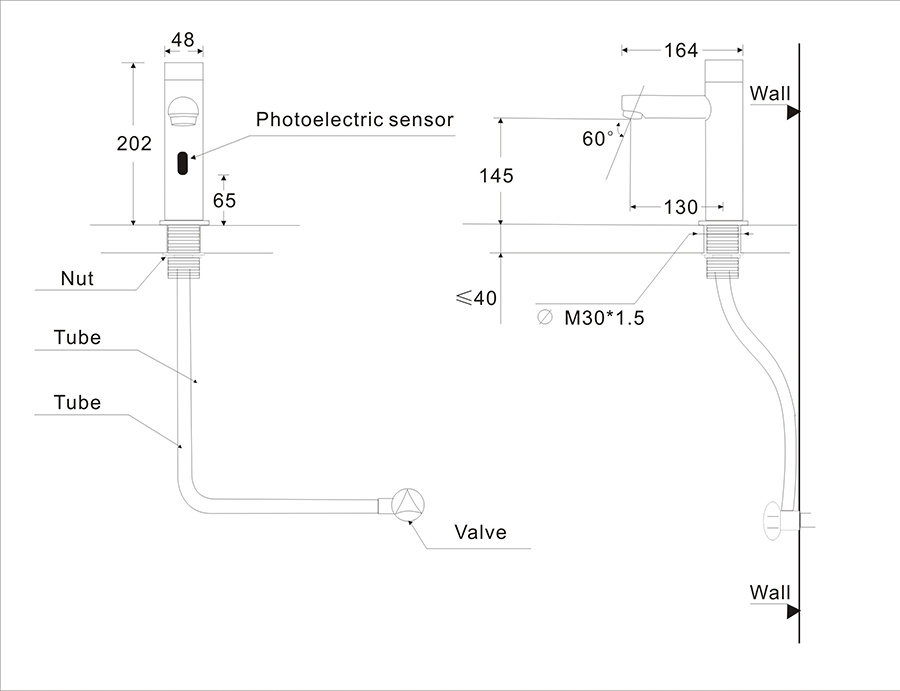

installation diagram

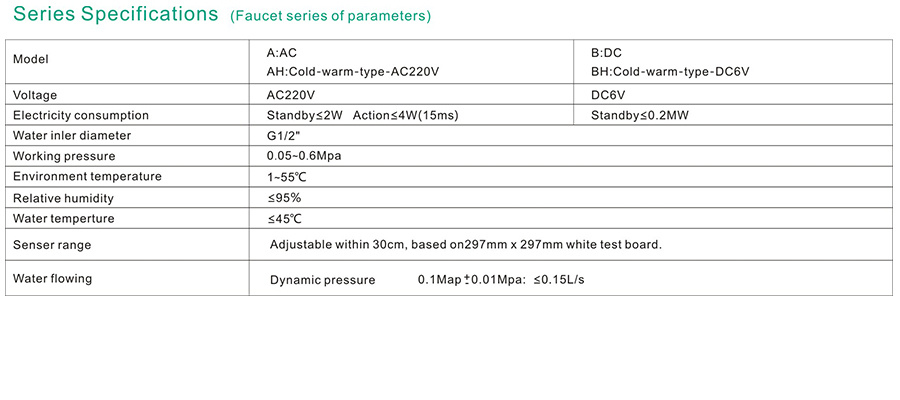

Product parameters
Details
1) ALL-IN-ONE IR sensor faucet, chrome plated brass body.
2)Power: DC 6V with 4 “AA” size ALKALINE 1.5V batteries.
3)Water inlet diameter – G1/2”(inch).
4)1 min overtime protection to save water.
5)Sensor distance can be adjusted.
6)Water saving device can be equiped with 2L/min,4L/min,6L/min.
7)DC6V type:Low voltage at 4.7V and the light of sensor will be flash to remind that the batteries is going to run out, and when the voltage is at 4.3V, the water will be shut off.
