C921A / C921B / C921AH / C921BH
- 01： 1)Basin mounted type with IR sensors，fully chrome plated Zinc alloy body.
- 02： 2)Power: AC220V, 50HZ (±10%) or DC 6V with 4 “AA” size ALKALINE 1.5V batteries, or both AC110V/220V & DC6V.
- 03： 3)Water inlet diameter – G1/2”(inch).
- 04： 4)1 min overtime protection to save water.
- 05： 5)Sensor distance can be adjusted.
- 06： 6)Water saving device can be equiped with 2L/min,4L/min,6L/min.
- 07： 7)DC6V type:Low voltage at 4.7V and the light of sensor will be flash to remind that the batteries is going to run out, and when
- 08： the voltage is at 4.3V, the water will be shut off.
- 09：
- 10：
Product Description

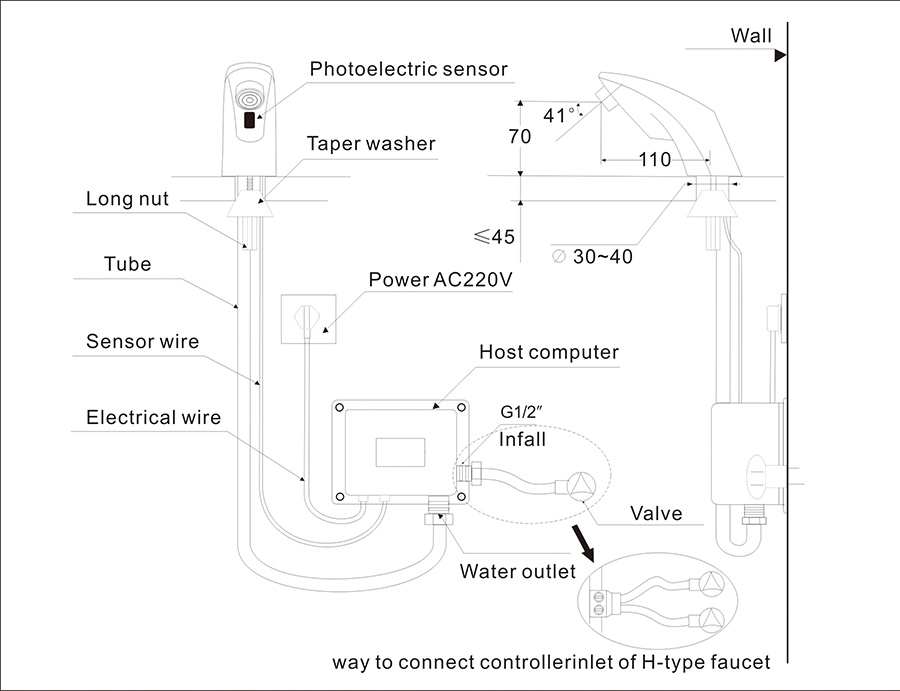

installation diagram
Product parameters
Details
1)Basin mounted type with IR sensors，fully chrome plated Zinc alloy body.
2)Power: AC220V, 50HZ (±10%) or DC 6V with 4 “AA” size ALKALINE 1.5V batteries, or both AC110V/220V & DC6V.
3)Water inlet diameter – G1/2”(inch).
4)1 min overtime protection to save water.
5)Sensor distance can be adjusted.
6)Water saving device can be equiped with 2L/min,4L/min,6L/min.
7)DC6V type:Low voltage at 4.7V and the light of sensor will be flash to remind that the batteries is going to run out, and when the voltage is at 4.3V, the water will be shut off.
