C729Bh
- 01： 1)All-in-one sensor faucet with water-temperature adjustable above the basin, the core parts like the solenoid valve, battery
- 02： box, and sensor are inside the faucet body.
- 03： 2)Fully chrome plated brass body.
- 04： 3)Fully automatic with IR sensors, the sensor distance is adjusted by a remote control.
- 05： 4)Power: DC 6V with 4 “AA” size ALKALINE 1.5V batteries.
- 06： 5)Electronic control components are filled with resins to give moisture free life. 6)Water inlet diameter – G1/2”(inch).
- 07：
- 08：
- 09：
- 10：
Product Description

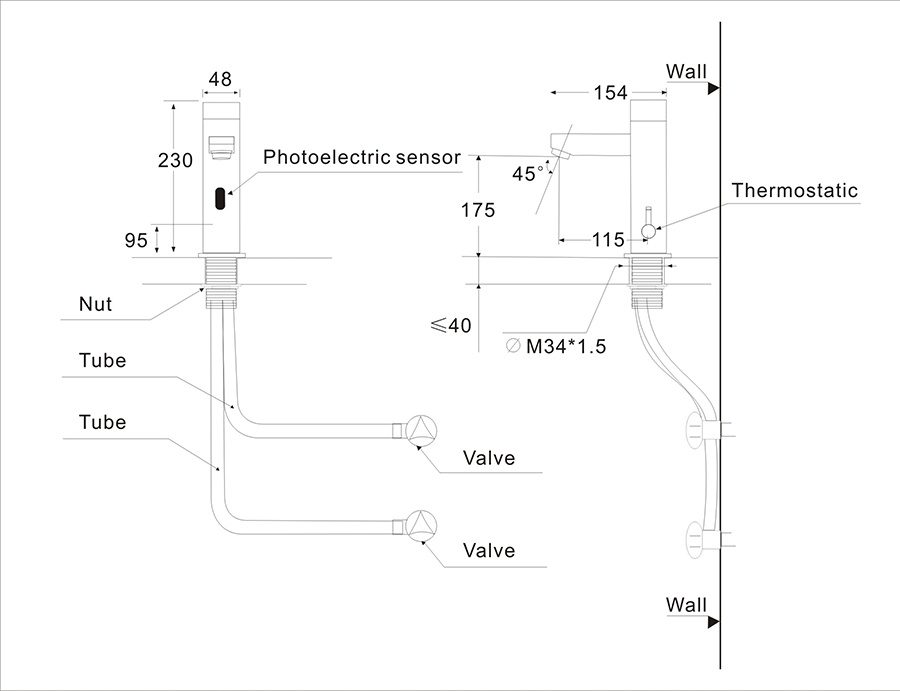

installation diagram

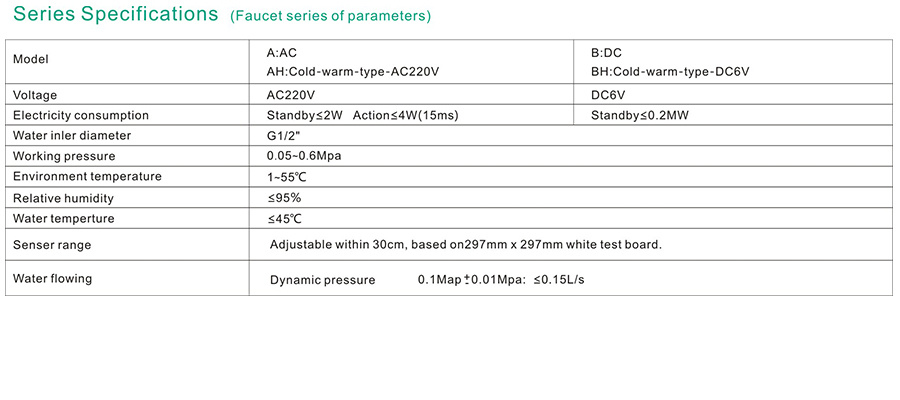

Product parameters
Details
1)All-in-one sensor faucet with water-temperature adjustable above the basin, the core parts like the solenoid valve, battery box, and sensor are inside the faucet body.
2)Fully chrome plated brass body.
3)Fully automatic with IR sensors, the sensor distance is adjusted by a remote control.
4)Power: DC 6V with 4 “AA” size ALKALINE 1.5V batteries.
5)Electronic control components are filled with resins to give moisture free life.
6)Water inlet diameter – G1/2”(inch).
