C924BS

01： 1)Exposed type, stainless steel plate with stainless steel outer rim, brass solenoid valve, sensor eye+electronic manual button.
02： 2)Chromatism resistance, that means the sensor can be against the different sensor distance of caused by black and white color.
03： 3)Fully automatic with IR sensors.
04： 4)Built-in water flow regulator valve allows water to be adjusted and turned off as desired.
05： 5)Electronic control components are filled with resins to give moisture free life.
06： 6)Water inlet diameter – G1”(inch).
07： 7)Power: AC110V/220V type or DC6V, or both AC TYPE & DC TYPE (“AA” size ALKALINE 1.5V batteris).
08： 8)Sensing range (default): 70±5cm( sensor range is fixed).
09：
10：

Product Description

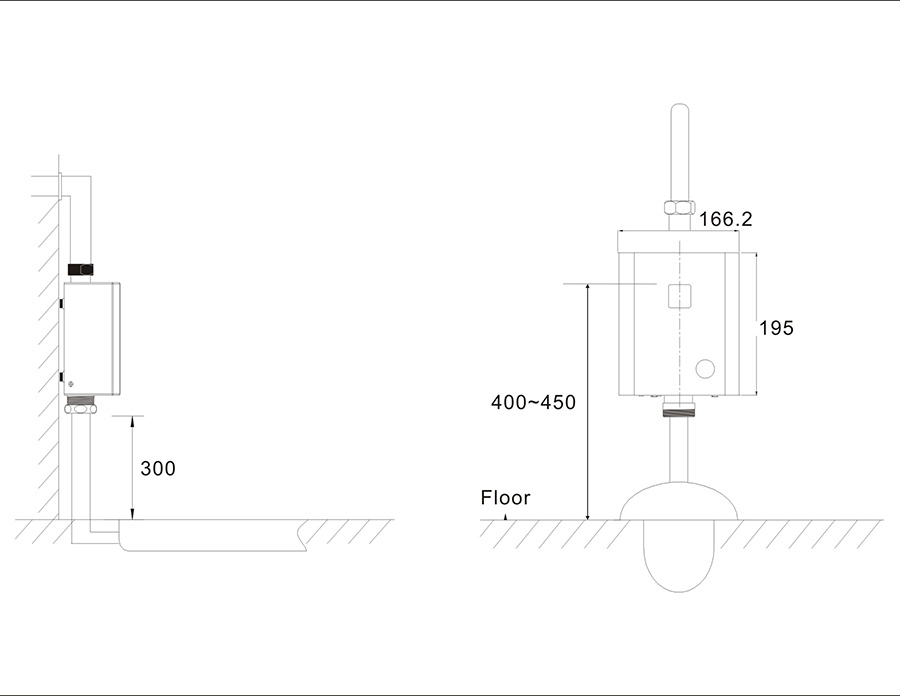

installation diagram

Product parameters

Details

1)Exposed type, stainless steel plate with stainless steel outer rim, brass solenoid valve, sensor eye+electronic manual button.

2)Chromatism resistance, that means the sensor can be against the different sensor distance of caused by black and white color.

3)Fully automatic with IR sensors.

4)Built-in water flow regulator valve allows water to be adjusted and turned off as desired.

5)Electronic control components are filled with resins to give moisture free life.

6)Water inlet diameter – G1”(inch).

7)Power: AC110V/220V type or DC6V, or both AC TYPE & DC TYPE (“AA” size ALKALINE 1.5V batteris).

8)Sensing range (default): 70±5cm( sensor range is fixed).
