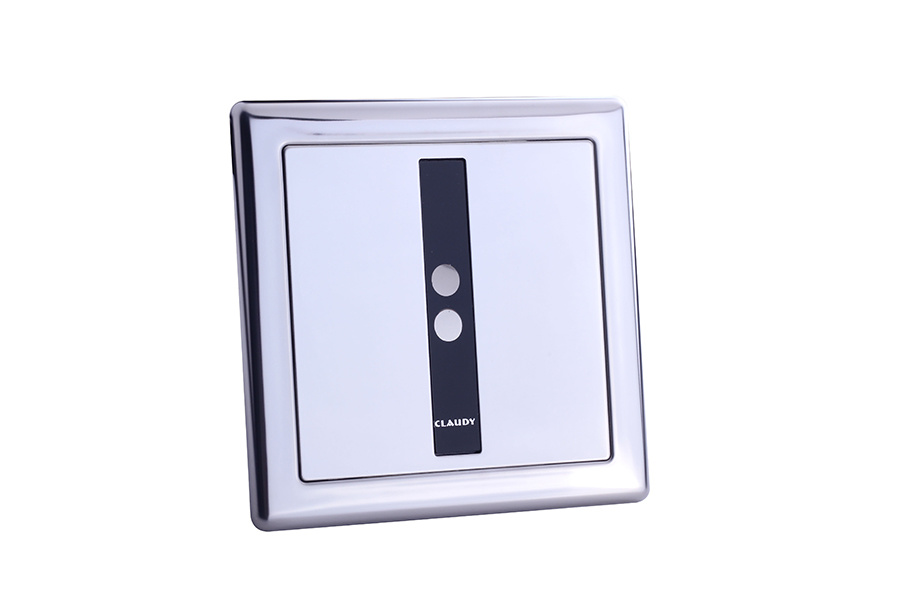

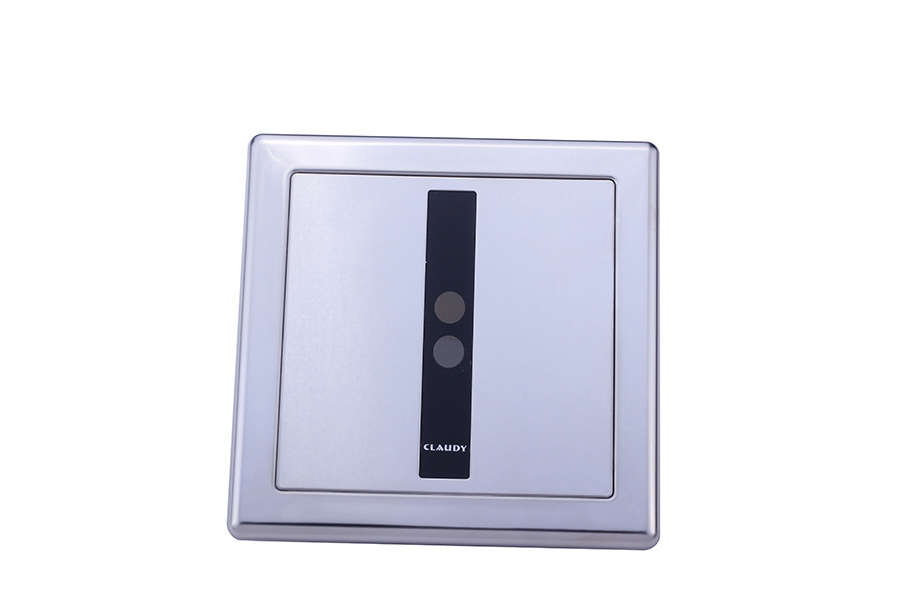

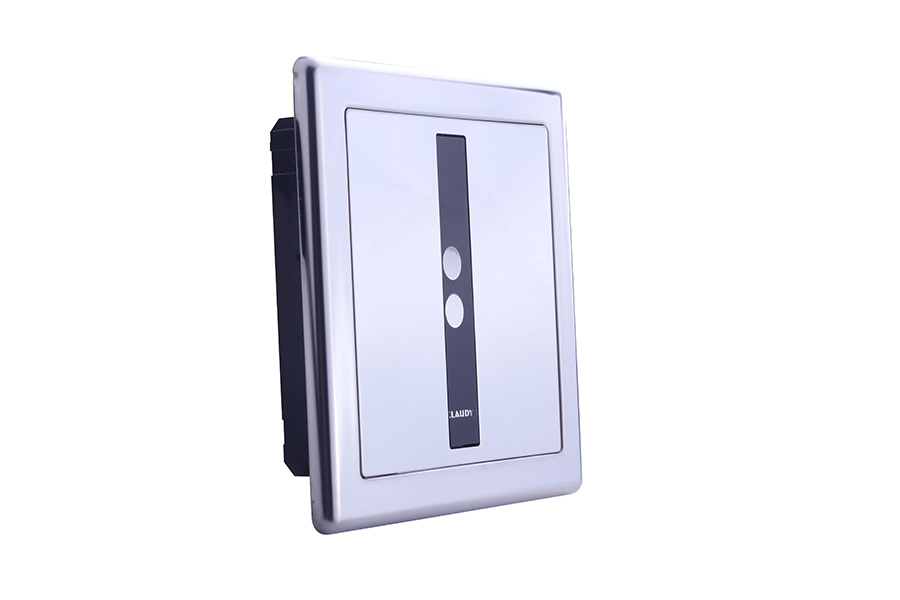

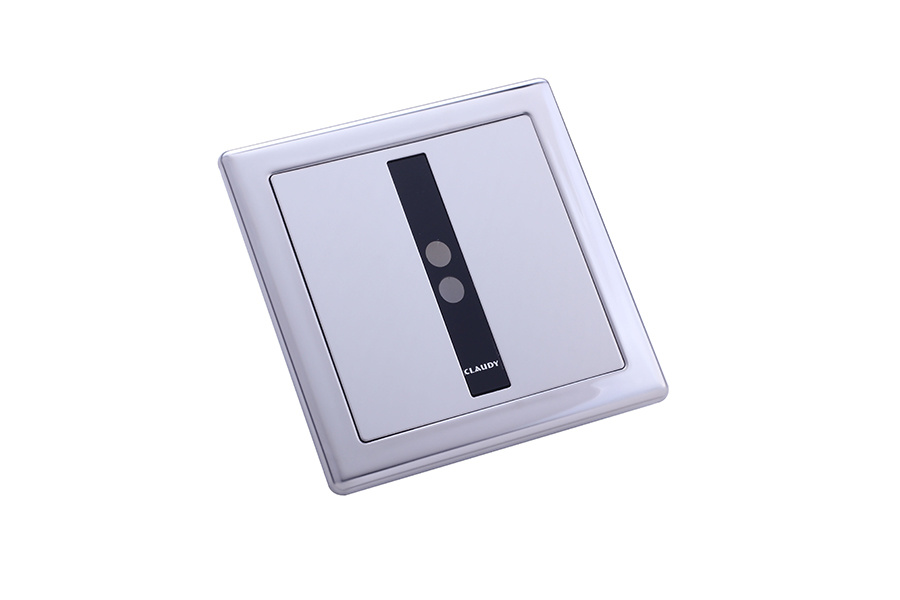

C503A / C503B

  • 01: 1)Concealed type, stainless steel panel with stainless steel outer rim, brass solenoid valve.
  • 02: 2)Fully automatic with IR sensors.
  • 03: 3)Built-in water flow regulator valve allows water to be adjusted and turned off as desired.
  • 04: 4)Electronic control components are filled with resins to give moisture free life.
  • 05: 5)Water inlet diameter – G1”(inch).
  • 06: 6)Power: AC110V/220V type or DC6V, or both AC TYPE & DC TYPE (“AA” size ALKALINE 1.5V batteris).
  • 07: 7)Sensing range adjustable: 0-80cm by a remote control.
  • 08:
  • 09:
  • 10:
Product Description

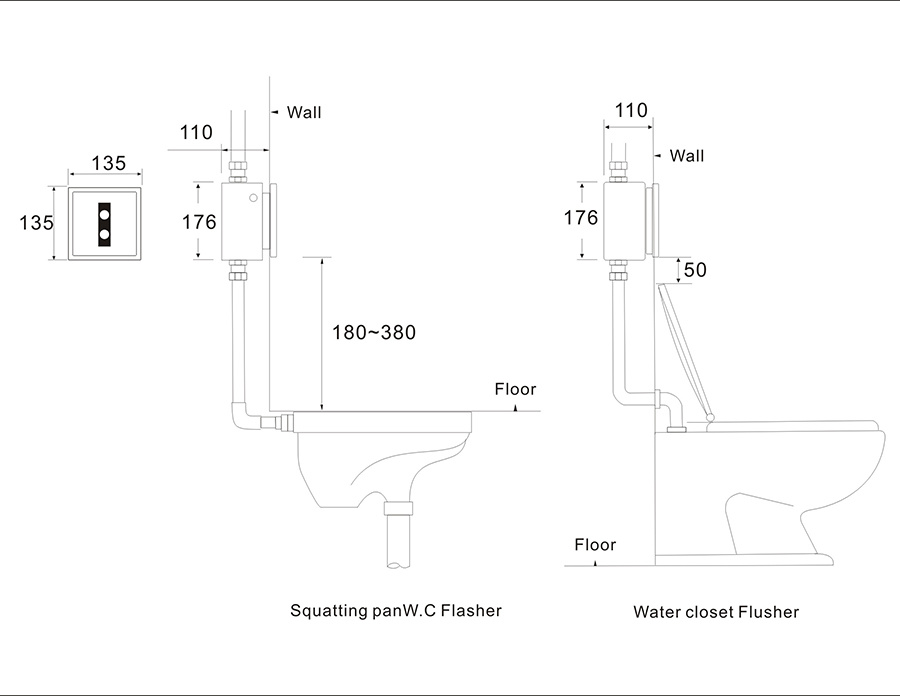

installation diagram

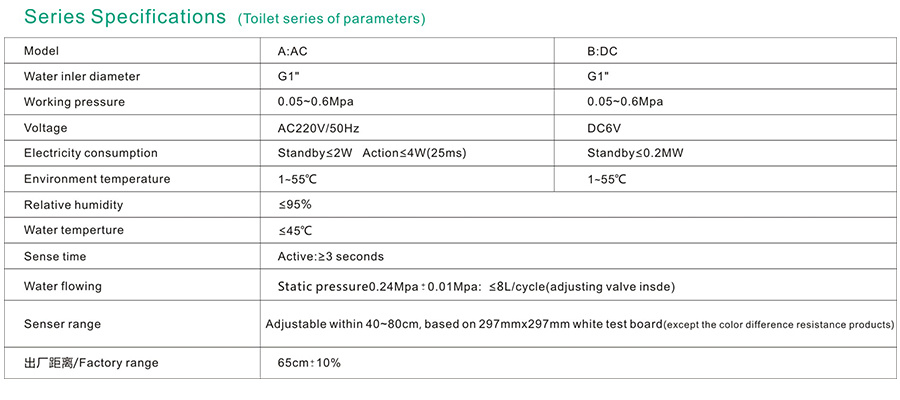

Product parameters
Details
1)Concealed type, stainless steel panel with stainless steel outer rim, brass solenoid valve.
2)Fully automatic with IR sensors.
3)Built-in water flow regulator valve allows water to be adjusted and turned off as desired.
4)Electronic control components are filled with resins to give moisture free life.
5)Water inlet diameter – G1”(inch).
6)Power: AC110V/220V type or DC6V, or both AC TYPE & DC TYPE (“AA” size ALKALINE 1.5V batteris).
7)Sensing range adjustable: 0-80cm  by a remote control.
