C903A / C903B
- 01： 1)Concealed type, stainless steel panel with stainless steel outer rim, brass solenoid valve.
- 02： 2)Fully automatic with IR sensors.
- 03： 3)Built-in water flow regulator valve allows water to be adjusted and turned off as desired.
- 04： 4)Electronic control components are filled with resins to give moisture free life.
- 05： 5)Water inlet diameter – G1”(inch).
- 06： 6)Power: AC110V/220V type or DC6V, or both AC TYPE & DC TYPE (“AA” size ALKALINE 1.5V batteris).
- 07： 7)Sensing range adjustable: 0-80cm by a remote control.
- 08：
- 09：
- 10：
Product Description

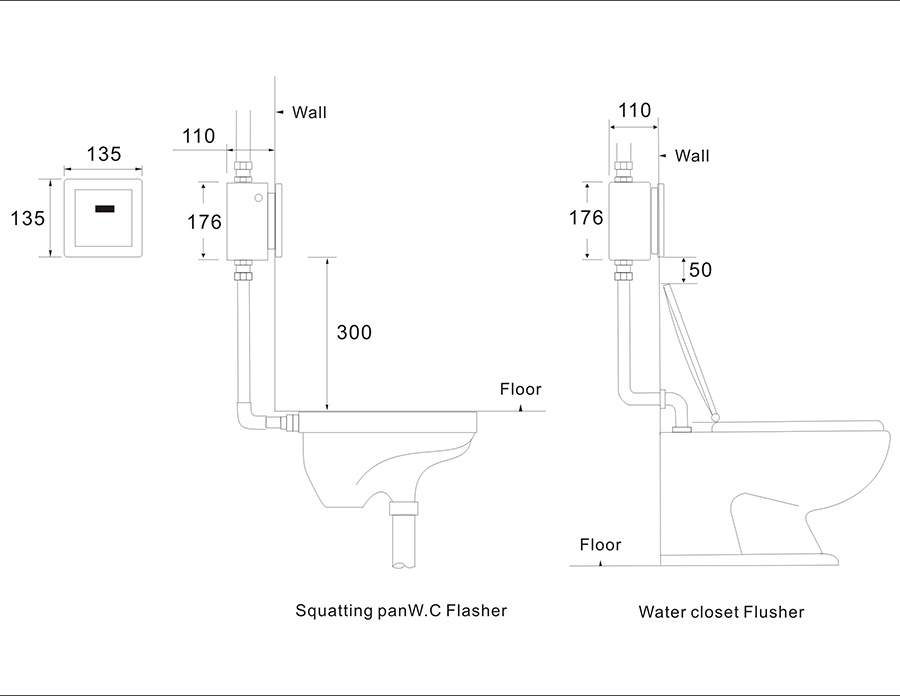

installation diagram

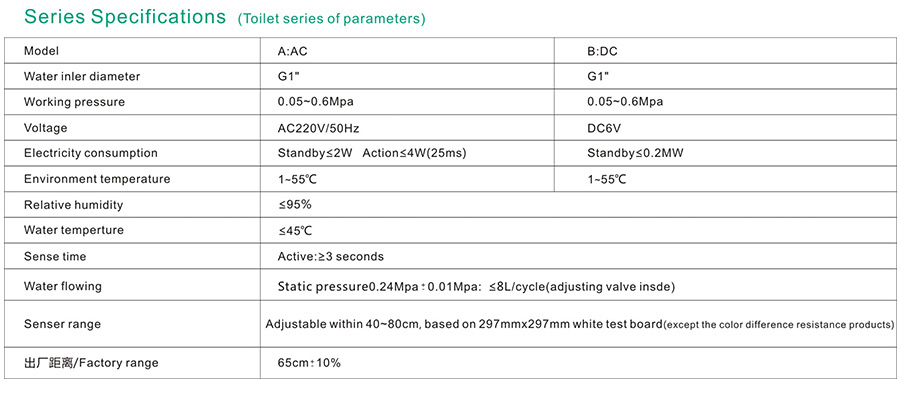

Product parameters
Details

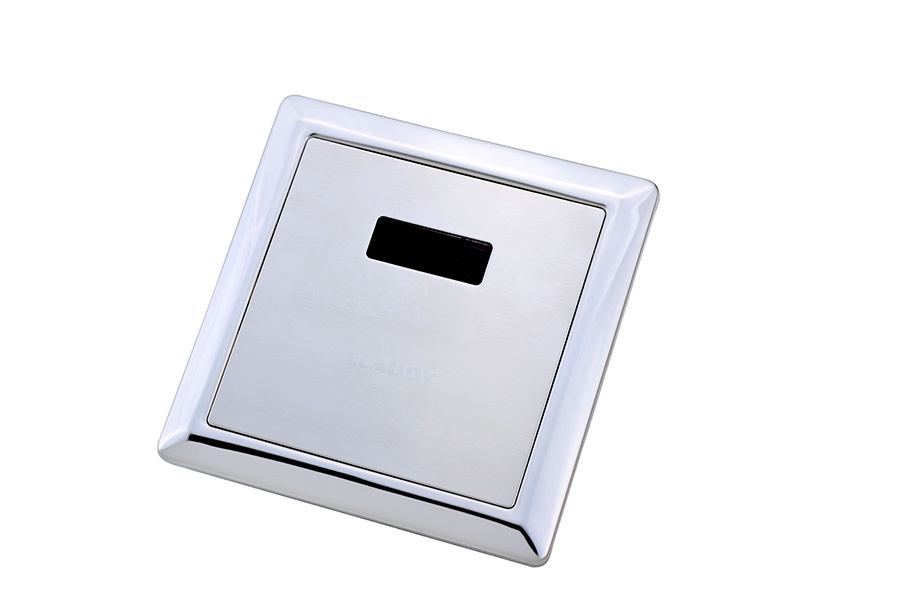

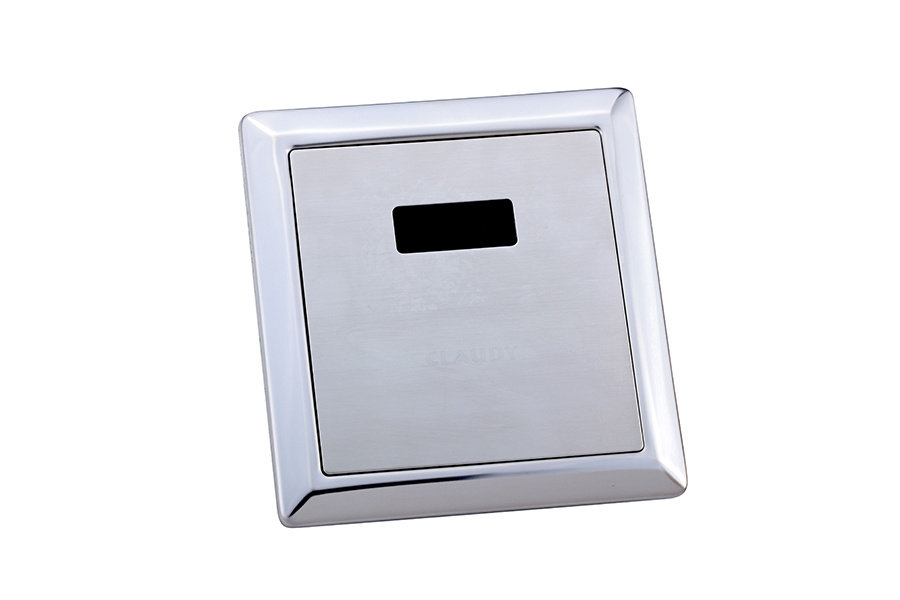

1)Concealed type, stainless steel panel with stainless steel outer rim, brass solenoid valve.
2)Fully automatic with IR sensors.
3)Built-in water flow regulator valve allows water to be adjusted and turned off as desired.
4)Electronic control components are filled with resins to give moisture free life.
5)Water inlet diameter – G1”(inch).
6)Power: AC110V/220V type or DC6V, or both AC TYPE & DC TYPE (“AA” size ALKALINE 1.5V batteris).
7)Sensing range adjustable: 0-80cm by a remote control.
